Product parameters
|
PARAMETER |
SUPPLY VOLTAGE |
REMARKS |
||||
|
1.8V |
2.5V |
3.3V |
||||
|
Frequency range |
0.137~125MHz |
0.137~133MHz |
0.137~166MHz |
32.768kHz available |
||
|
Frequency stability |
±20ppm / ±25ppm / ±50ppm |
See note below |
||||
|
Operating temperature range |
–10 to +60°C / –20 to +70°C / –40 to +85°C |
Options up to +125°C |
||||
|
Aging first year |
±3.0ppm |
@+25°C |
||||
|
Supply current |
7~15mA |
8~18mA |
10~20mA |
1~30~75MHz @15pF |
||
|
25mA |
30mA |
35mA |
≥75~133MHz @15pF |
|||
|
--- |
40mA |
45mA |
≥133MHz @15pF |
|||
|
Output waveform and load |
LVCMOS 15pF |
30pF optional |
||||
|
Output voltage level HIGH |
1.62V |
2.25V |
2.97V |
Minimum |
||
|
Output voltage level LOW |
0.18V |
0.25V |
0.33V |
Maximum |
||
|
Rise and Fall times |
5ns |
5ns |
5ns |
1~100MHz @10~90% of VCC |
||
|
3ns |
3ns |
3ns |
≥100MHz @10~90% of VCC |
|||
|
Symmetry (duty cycle) |
45~55% or 40~60% |
@ 50%VCC |
||||
|
Phase jitter RMS |
<1ps |
12kHz≤Fj≤20MHz |
||||
|
Note: Stability includes frequency deviations at +25°C, over temperature range, due to supply voltage |
||||||
Product Features

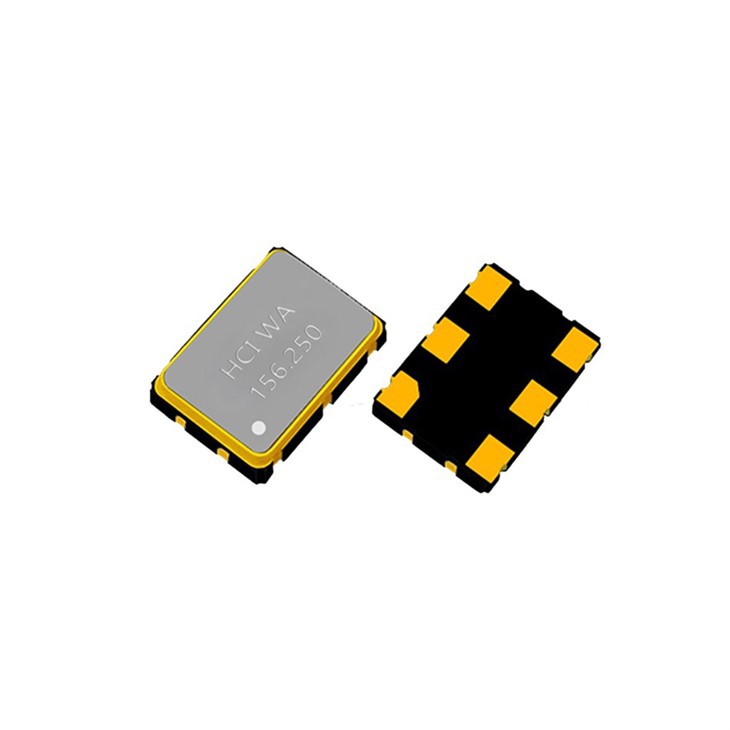

■ Small dimensions 7.0x5.0x1.3 with 6 solder pads
■ Tight stabilities over temperature range
■ Tri-state enable/ disable function (pad 1)
Applications
- Suzhou Hangjing's CO75H6 Series is widely used in applications such as DSL/WLAN/Ethernet, motherboards, notebooks/PDAs, and VGA cards.
Product advantages
Multi-Voltage Compatibility
Operates across 1.8V, 2.5V, and 3.3V supplies, offering design flexibility for a variety of digital systems and reducing the need for voltage level shifters.
Low Jitter Performance:
Features very low phase jitter (<1ps RMS within 12kHz–20MHz), making it ideal for high-speed and noise-sensitive communication and computing systems.
certificate
The 6-P SMD Oscillators 7050 series is RoHS and REACH compliant, and is manufactured with lead-free and halogen-free materials.
FAQ
Q: Can the Suzhou Hangjing's 7050 oscillator withstand harsh operating environments?
A: Absolutely. This series is designed for reliability across various temperatures. Standard operating temperature ranges include -40°C to +85°C, with options available for extended ranges up to +125°C, suitable for industrial and automotive applications.
Q: How stable is the frequency output over temperature and time?
A: The 7050 series provides excellent frequency stability. We offer multiple stability grades (±20ppm, ±25ppm, and ±50ppm options) to meet different precision needs.
