Product parameters
|
PARAMETER |
FL38T2 |
CONDITIONS / REMARKS |
|
|
Nominal frequency range |
32.768kHz |
28 ~ 100kHz |
Please contact us for available frequencies. |
|
Vibration mode |
Fundamental |
||
|
Frequency tolerance |
±20ppm / ±30ppm / ±50ppm / ±100ppm |
Other options available. |
|
|
Stability over temperature |
-0.042ppm/°C² TYP |
Parabolic coefficient. |
|
|
Operating temperature range |
-20 to +70°C or -40 to +85°C |
Other options available. |
|
|
Turnover temperature |
+25±5°C |
||
|
Equivalent series resistance (ESR) |
<30kΩ |
<30kΩ <20kΩ |
<40kHz |
|
Shunt capacitance |
2.0pF |
2.0pF |
Typical |
|
Motional capacitance |
3.2fF |
1.5~4.5fF |
Depending on frequency. |
|
Load capacitance |
6pF/ 7pF / 9pF/ 12.5pF |
Please specify. |
|
|
Drive level |
0.1μW TYP / 1.0μW MAX |
||
|
Aging first year |
±5ppm |
At +25°C |
|
Product Features
■ Package dimensions:
Ø3x8mm with 2 leads.
■ Reliable vacuum sealed metal can package.
■ Suitable for low power consumption applications.
Applications
- The 32.768KHz DIP Crystal (3×8mm) FL38T2 series is widely used in: Real-time clocks (RTC), TV/LCD monitor timing circuits and Industrial timers & controllers.
Product advantages
Flexible Frequency Options:
请替换当前内容 We always use natural wood and log as materials, without any splicing or chemical processing, which is natural, environment-friendly and of good quality. Give your home the best touch and atmosphere
Custom Engineering Support:
Fully customization to meet clients' exact technical specifications
certificate

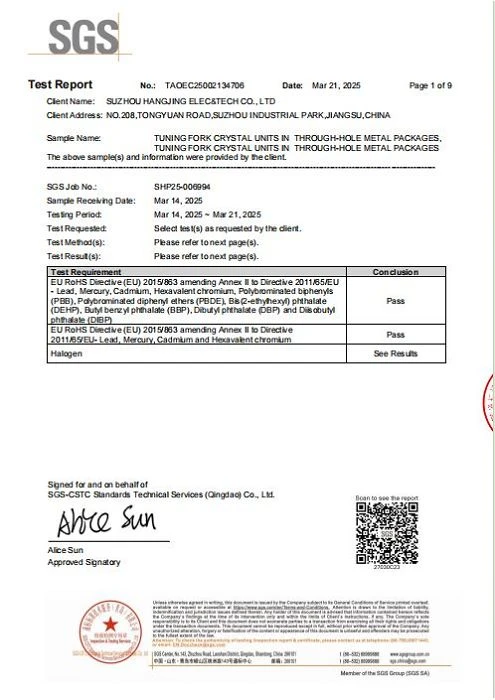

Designed to adhere to international environmental regulations, the 32.768KHz DIP Crystal 3*8 FL38T2 series is RoHS/REACH-certified, lead-free, and halogen-free.
FAQ
Q1: What's your standard packaging configuration?
A: Suzhou Hangjing's standard packaging includes: inner Bags: 1,000pcs maximum per bag; outer Boxes: 5-10 bags per box. Custom Options: Bulk packaging available upon request (tailored to your specific requirements).
Q2: What's the Frequency tolerance for your 32.768KHz DIP Crystal 3*8 FL38T2 series?
A: ±20ppm / ±30ppm / ±50ppm / ±100ppm, other options are also available.
Q3: Do you recommend any related product series?
A: Yes, you may consider the 3438T series, which is available through distributors like Digikey.
