Product parameters
|
PARAMETER |
XC63G2 |
CONDITIONS / REMARKS |
|
|
Nominal frequency range |
8.0 ~ 100.0MHz |
Fundamental up to 50MHz and 3rd overtone from 40MHz. |
|
|
Crystal cut and mode |
AT - cut / FUND & 3rd Overtone |
-- |
|
|
Frequency tolerance |
±10ppm to ±50ppm |
other options available. |
|
|
Frequency stability |
±10ppm |
±30ppm |
other options available. |
|
Operating temperature range |
-20 to +70°C |
-40 to +85°C |
other options available. |
|
Equivalent series resistance |
60Ω |
FUND - 8.0 ~ 12.0MHz |
|
|
Load capacitance |
6 ~ 32pF or SERIES |
Please specify. |
|
|
Shunt capacitance |
<7pF |
-- |
|
|
Drive level |
10μW TYP / 300μW MAX |
-- |
|
|
Aging |
±3ppm |
Per year |
|
Product Features
■ High Frequency Stability:
- Offers excellent frequency accuracy (±10ppm to ±20ppm), ensuring reliable performance in precision applications.
■ Form Factor:
- Adopts a 6.0mm x 3.5mm dimension, offering a balance between compact size and structural stability for space-constrained designs
■ Frequency Performance:
- Delivers stable frequency output within a specified MHz range, with excellent temperature stability to maintain timing accuracy across fluctuating thermal conditions
Applications
- GLASS Frequency Crystal 6035-XC63G2 series is widely used in communication equipment (5G modems, routers, and satellite communication), industrial automation (used in programmable logic controllers (PLCs), robotics, and industrial sensors).
Product advantages
Durable Glass Sealing:
Enhanced resistance to moisture, shock, and environmental stress.
Stable & Accurate Timing:
Maintains high frequency precision (±10ppm to ±30ppm), crucial for smooth operation in smart devices, wearables, and communication systems.
certificate

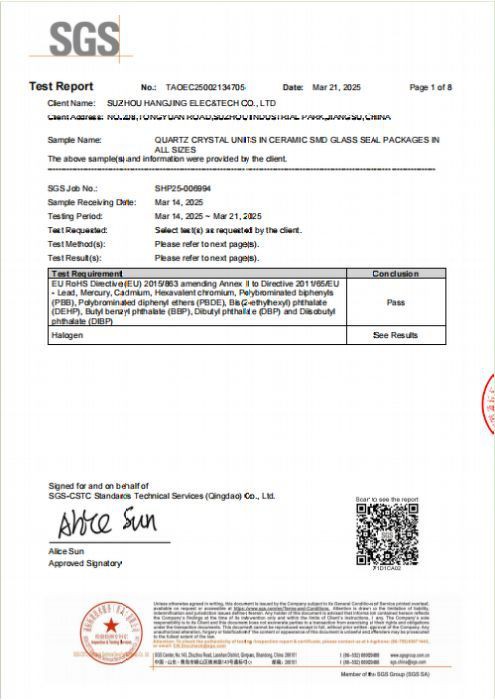

The GLASS Frequency Crystal 6035-XC63G2 products is lead-free, halogen-free, and fully compliant with RoHS and REACH regulations.
FAQ
Q1: Can the GLASS Frequency Crystal 6035 be used for any frequency band?
A: The frequency range for Suzhou Hangjing's GLASS Frequency Crystal 6035 series varies from 8 MHz to 100 MHz. The specific range will depend on the required product.
Q2: What is the quantity of the standard packaging for the passive crystal GLASS Frequency Crystal 6035? And what is the general delivery time?
A: The standard quantity of this series in packaging is 1000 pieces, and the delivery time is usually within 3 to 4 weeks.
Q3: For the end users in Automotive industry, besides your XC63G2series, what other hot package sizes you recommended ?
A: The hot package sizes are 2016 and 3225. Among them, the 2016 package can achieve the lowest frequency of 16 MHz, while the 3225 package can achieve the lowest frequency of 8 MHz. These two models have high cost-effectiveness, are more widely applied, have good performance and quality, and have large production capacity.
