Product parameters
|
PARAMETER |
X49UT2 |
CONDITIONS / REMARKS |
|
Nominal frequency range |
1.8432 ~ 100.0MHz |
Fundamental up to 35MHz and 3rd overtone up to 100MHz. |
|
Crystal cut and mode |
AT-cut / FUND & 3rd OT |
|
|
Frequency tolerance |
±10ppm / ±20ppm / ±30ppm |
Other options available. |
|
Frequency stability |
±10ppm;±30ppm |
Other options available. |
|
Operating temperature range |
-20 to +70°C;-40 to +85°C |
Other options available. |
|
Equivalent series resistance |
500Ω ~ 200Ω |
FUND = 1.8 to 2.9MHz |
|
Load capacitance |
4 ~ 32pF or SERIES |
Please specify. |
|
Shunt capacitance |
<7pF |
-- |
|
Drive level |
100μW TYP / 500μW MAX |
-- |
|
Aging first year |
±5ppm |
@+25°C |
Product Features
■ Standard Package & Dimensions:
- Typical size 11.05×4.65×13.49mm (varies by model) with 2-pin design for traditional PCB soldering
■ Wide Frequency Range:
- Supports 1.8432MHz to 200MHz, covering fundamental, 3rd overtone, and 5th overtone modes for diverse applications
■ Flexible Precision Options:
- Adjustable frequency tolerance (±10/±20/±30 ppm) and stability for tailored performance
Applications
- X49UT2 series HC-49U MHz crystals deliver precision timing for applications including power systems, telecommunications, and industrial system.
Product advantages
Ultra-Low Frequency Operation:
The oscillator supports ultra-low frequency operation (from 1.8432MHz) with customizable frequency points available upon request.
Flexible Pin Configuration:
Customizable configurations including 2-pin, 3-pin or 4-pin options to meet specific customer requirements.
Long-Term Supply Assurance:
Extended product life-cycle ensures stable supply for legacy designs - no planned EOL in the near future.
certificate

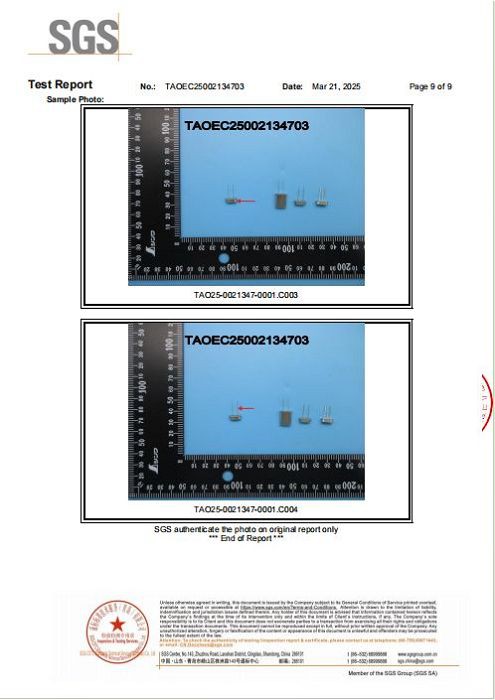

HC-49U MHz Crystals X49UT2 Series is RoHS compliant and REACH compliance verified, lead-free, and halogen-free, meeting international environmental standards for electronic components.
FAQ
Q1: What is the product life-cycle of the HC-49U MHz Crystals X49UT2 Series? How much advance notice will customers receive before discontinuation?
A: This product has an extended life-cycle with ongoing production. Customers will receive at least 6 months' advance notice prior to any discontinuation. Currently, there are no planned EOL (End-of-Life) notifications – it remains in stable supply status.
Q2: What is the lowest frequency point available for Hangjing's X49UT2 Series? Which frequency points are most commonly shipped?
A: The series supports frequencies as low as 1.8432MHz. High-volume shipment frequencies include:
6MHz, 4MHz, 3.072MHz, 3.2MHz, 2.4576MHz, 12MHz (common low-frequency options).
Q3: How does the HC-49U MHz Crystal compare in cost-performance?
A: As a legacy product primarily used in niche legacy projects overseas, its volume demand continues to decline due to replacement by compact SMDs (e.g., 3225). While less competitive versus newer solutions, we guarantee ongoing stable supply and support custom designs (special frequencies, pin configurations, etc.) for specialized needs.
